Storm Drain Filter Inserts
Storm Adjustable Frame Model Drain Filter
Traditional storm drain filters often depend on the heavy storm drain grate for support, which can lead to complications during maintenance. When the grate is lifted for servicing, the filter tends to fall to the bottom of the catch basin, causing unnecessary delays and frustration.
With our Adjustable Storm Drain Filter, specifically the Adjustable Ultra Drain Guard, you can avoid this hassle entirely. This innovative filter is supported by a durable steel framework, ensuring it remains securely in place even when the grate is removed. For more information about our Catch Basin Filter Options, contact us.
Our friendly staff is here to help you get the exact product you need!
Call Us! 1-863-261-8388or Contact us for additional information.
Adjustable Storm Drain Model Advantages
- Versatile Fit: It quickly re-sizes to fit almost any storm drain—no trimming of excess fabric required, making installation seamless and efficient.
- Secure Stability: The steel frame adjusts to keep the Ultra Drain Guard firmly in place, preventing it from falling into the basin even when the grate is lifted, ensuring reliable performance during maintenance.
- Strong Attachment: Equipped with heavy-duty hook-and-loop fasteners around the perimeter of the Ultra Drain Guard skirt, this insert guarantees a secure fit to the frame, enhancing durability and functionality.

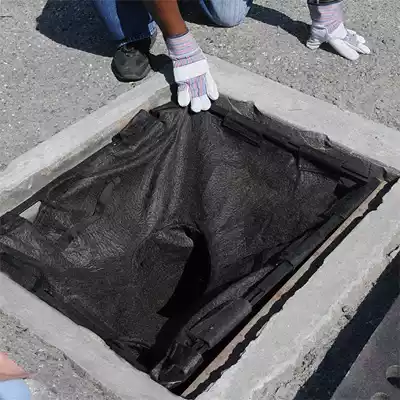

- Easy Installation: Enjoy a quick and clean installation process with no measuring or trimming necessary, allowing for immediate use in effective stormwater management.
- Cost-Effective Design: The reusable steel frame not only offers sustainability but also features replacement filter fabric that is easily installed, making this solution both economical and practical for maintaining clean drainage systems.
Adjustable Storm Drain Guard Details

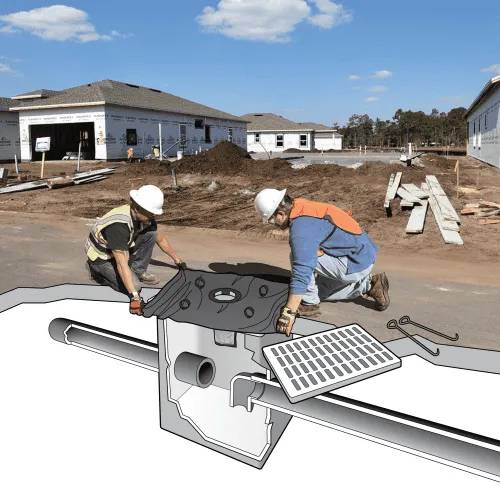

There are various conventional storm drain guards, most of which rely on being placed directly in the catch basin. This often requires trimming excess fabric to fit the storm drain opening, which can be cumbersome, especially when the drain fills up.

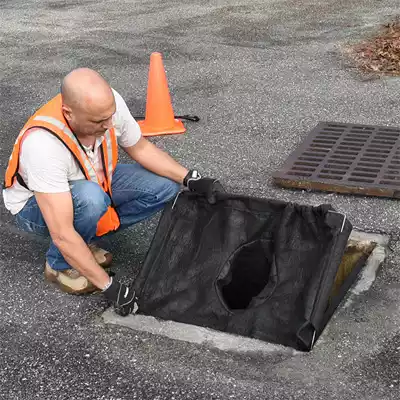

The Adjustable Frame Model, however, offers a different approach. Instead of relying on conventional methods, this model features a sturdy steel framework that adjusts to fit different drain sizes seamlessly.
Find out more about all the kinds of drain guards we carry by watching our video below.
What are the advantages of this installation method? For one, the Adjustable Frame Model stays securely in place even when the storm drain grate is lifted. Unlike traditional models, there’s no need to secure the guard beforehand, eliminating the risk of it falling into the basin during maintenance.
Another benefit is aesthetics; there’s no excess material that needs trimming or could protrude above the grate. This results in a clean and streamlined installation, enhancing the overall appearance of the drainage system.
Our friendly staff is here to help you get the exact product you need!
Call Us! 1-863-261-8388or Contact us for additional information.
Adjustable Frame Model Storm Drain Specs
| Specifications | Ultratech 8930 | Ultratech 8931 |
|---|---|---|
| Quantity | 1 | 10 |
| Dimensions in. (mm) | 16L x 20W x 18H (406 x 508 x 458) to 26L x 32W x 18H (660 x 813 x 458) |
16L x 20W x 18H (406 x 508 x 458) to 26L x 32W x 18H (660 x 813 x 458) |
| Containment Capacity gal. (L) | Up to 0.5 gal (1.9 L) of Oil | Up to 0.5 gal (1.9 L) of Oil |
| Weight Capacity UDL (lbs) | Up to 40 lbs. (18 kg) of Sediment | Up to 40 lbs. (18 kg) of Sediment |
Other Options
| Specifications | Ultratech 8932 |
|---|---|
| Model | Adjustable Frame Model, Replacement Filter Fabric |
Non-woven, Polypropylene Geotextile Material Specifications
| Properties | ASTM Test | Value |
|---|---|---|
| Grab Tensile | D 4632 | 205 lbs |
| Elongation | D 4632 | 50% |
| Trapezoid Tear | D 4533 | 85 lbs |
| Puncture | D 4833 | 525 lbs |
| CBR Puncture | D 6241 | 600 lbs |
| Mullen Burst | D 3786 | 420 psi |
| Permittivity | D 4491 | 1.4 sec-1 |
| A.O.S. (U.S. sieve no.) / Microns | D 4751 | 80 / 180 |
| UV Stability (strength retained %) 500 hrs | D 4355 | 70% |
| Fabric Weight (oz/yd2) (typical) | D 5261 | 8 oz/yd2 |
| Flow (through material) Flow (bypass ports gpm) * Flow (bypass ports cfs) * |
D 4491 | 90 gpm/ft2 770 gpm 1.7 cfs |
* Larger bypass flow rate designs are available
Storm Drain Downloads
Stormwater Filter Guard Applications

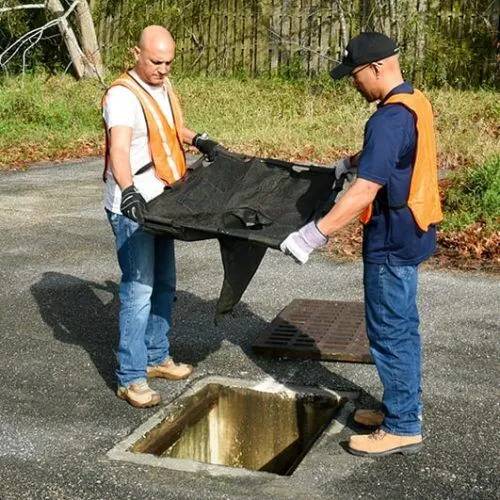

The Adjustable Frame Model Drain Guard adjusts to fit different drain sizes without the need for trimming excess fabric. It catches silt, sediment, and debris as it enters a storm drain. Perfect for construction sites wanting to protect storm drains from stormwater runoff, the Adjustable Frame Model and Economy Frame Model Storm Drain Guard make installation simple and easy. You can't afford to waste precious time on the jobsite. Now you don't have to. When it's time to remove the Adjustable Frame Storm Drain Guard, the drain guard itself is held in place by the frame, so you can easily remove it.
Adjustable Frame Model Storm Drain FAQs

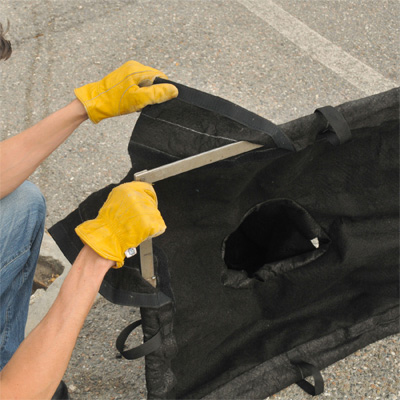

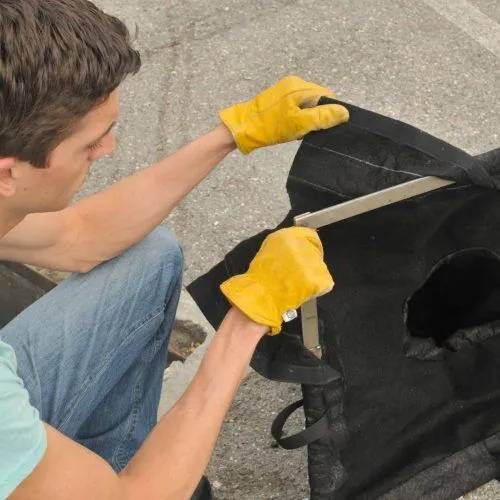

The Adjustable Frame Drain Guard can be reused. Typically, each Ultra Drain Guard can be reused, as long as the silt, sediment, and debris are removed from it. If oil and hydrocarbons have been filtered, then the drain guard needs to be disposed of properly in accordance with local regulations. The frame of this drain guard can also be reused, and you can purchase a 10-pack of filters (Part# 8932). To place a new filter on an existing frame, simply remove the old fabric by pulling apart the hook and loop fasteners around the top perimeter of the drain guard and replace it with the new one. The Economy Frame Model cannot be reused.
The life span of a typical drain guard varies depending on the location and environmental conditions. High volumes of stormwater and pollutants will have an effect on the filter's life expectancy. It is recommended that you check the drain guard after each rainfall event to inspect its effectiveness.
