Collapsible Spill Containment
Ultra Spill Berm Stake Wall Model

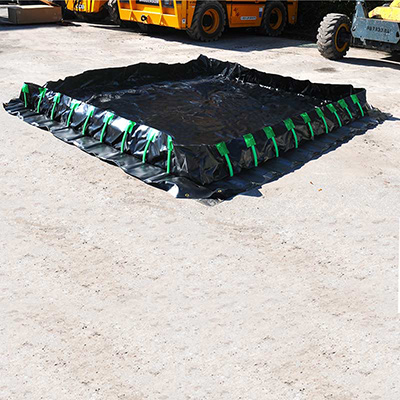

Collapsible spill containment through the Ultra Stake Wall Model Spill Berm helps you capture leaks, spills, and drips from machinery and equipment to keep them from contaminating the surrounding environment. The portable Stake Wall Model Containment Berm is a portable spill berm that calls for no set-up and easily folds for transport across your jobsite. The Stake Wall Model's drive in and drive out feature component are the flexible polyurethane stakes that allow the sidewalls to spring back into place automatically after being bent in either direction. For more information, Contact Us or Call Us at 863-261-8388. See our Stake Wall Model collapsible spill berm video below for more information too!
Our friendly staff is here to help you get the exact product you need!
Call Us! 1-863-261-8388or Contact us for additional information.
Stake Wall Model Spill Berm Features
- Flexible Polyurethane Stake Wall Design
- Vertical Sidewalls Every 12 Inches
- Easy Setup and Take Down
Stake Wall Model Spill Berm Benefits
- Folds For Easy Transport
- Constructed with Durable Fabric
- True Drive-In and Drive-Out Capabilities
Want to see how our different spill berms work? Watch our videos below for more information.
Collapsible Spill Containment Spill Berm Details
Collapsible Spill Containment Spill Berm Video

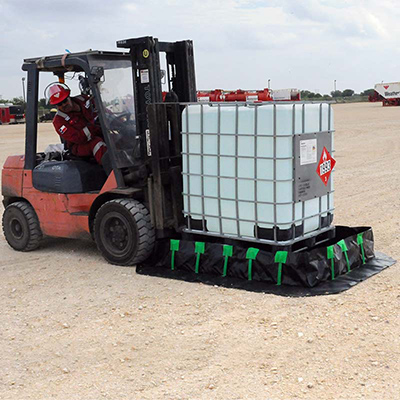

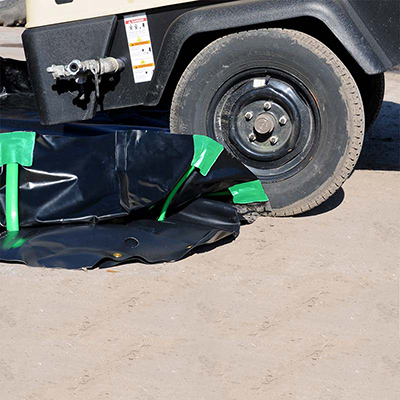

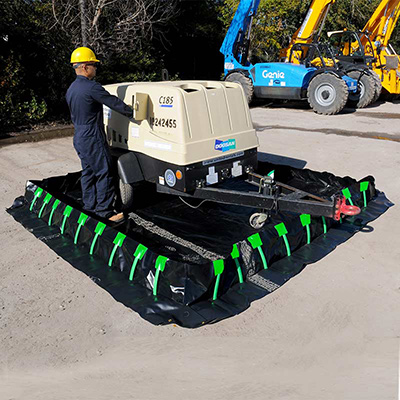

The Stake Wall Model collapsible spill berm is portable spill and leak containment for 55-gallon drums, IBC totes, frac tanks, equipment, and other vehicles. The Stake Wall model has sidewalls made from flexible polyurethane stakes that spring back into place automatically when being bent in either direction. The flexible design of the sidewalls makes this collapsible spill containment berm is a true drive-in and drive-out solution, allowing trucks and vehicles to roll over the walls without breaking the upright structure. The vertical sidewall supports are located every 12 inches. Each support features a built-in "living hinge" at the base that allows the sidewalls to collapse in either direction. The collapsed sidewalls will spring back in either direction. There's no set up required for the Stake Wall Model collapsible spill berm.
You can easily fold and transport this UltraTech spill berm to different locations. For spill containment and protection, simply unfold the spill containment berm and the sidewalls will automatically spring into their vertical position. Other details about the Collapsible Spill Containment Berms include the operating temperature range and the weights of the materials used to construct the berm. The operating temperature range for PVC is Max 150°F, Min: -20°F and Copolymer 2000 is Max 160°F, Min: -25°F. The weight of the Copolymer 2000 is 25 oz. / sq. yard and PVC is 22 oz. / sq. yard.
The drive-over spill containment berm will keep you in compliance with EPA Container Storage Regulation 40 CFR 264.175 and Spill Prevention, Control and Countermeasure Act (SPCC).
Collapsible 'Stake Wall' Spill Berm Specs
| Part # | Dimensions ft. (m) | Capacity gal. (L) | Weight lbs. (kg) |
|---|---|---|---|
| UltraTech 8208 | 6 x 4 x 1 (1.8 x 1.2 x .3) | 179 (677.6) | 37 (16.8) |
| UltraTech 8209 | 6 x 6 x 1 (1.8 x 1.8 x .3) | 269 (1018.3) | 46 (20.9) |
| UltraTech 8210 | 10 x 10 x 1 (3 x 3 x .3) | 748 (2831.5) | 87 (39.5) |
| UltraTech 8220 | 20 x 10 x 1 (6.1 x 3 x .3) | 1496 (5663) | 150 (68) |
| UltraTech 8221 | 30 x 10 x 1 (9.1 x 3 x .3) | 2244 (8494.5) | 208 (94.3) |
| UltraTech 8222 | 40 x 10 x 1 (12.2 x 3 x .3) | 2992 (11326) | 266 (120.7) |
| UltraTech 8223 | 50 x 10 x 1 (15.2 x 3 x .3) | 3740 (14157.4) | 325 (147.4) |
| UltraTech 8224 | 12 x 12 x 1 (3.7 x 3.7 x .3) | 1077 (4076.9) | 113 (51.3) |
| UltraTech 8225 | 20 x 12 x 1 (6.1 x 3.7 x .3) | 1795 (6794.8) | 162 (73.5) |
| UltraTech 8226 | 30 x 12 x 1 (9.1 x 3.7 x .3) | 2692 (10190.3) | 223 (101.2) |
| UltraTech 8227 | 40 x 12 x 1 (12.2 x 3.7 x .3) | 3590 (13589.6) | 284 (128.8) |
| UltraTech 8228 | 50 x 12 x 1 (15.2 x 3.7 x .3) | 4488 (16988.9) | 345 (156.5) |
| UltraTech 8229 | 60 x 12 x 1 (18.3 x 3.7 x .3) | 5385 (20384.4) | 406 (184.2) |
| UltraTech 8230 | 15 x 15 x 1 (4.6 x 4.6 x .3) | 1683 (6370.8) | 151 (68.5) |
| UltraTech 8231 | 20 x 15 x 1 (6.1 x 4.6 x .3) | 2244 (8494.5) | 184 (83.5) |
| UltraTech 8232 | 30 x 15 x 1 (9.1 x 4.6 x .3) | 3366 (12741.7) | 250 (113.4) |
| UltraTech 8233 | 40 x 15 x 1 (12.2 x 4.6 x .3) | 4488 (16988.9) | 317 (143.8) |
| UltraTech 8211 | 50 x 15 x 1 (15.2 x 4.6 x .3) | 5610 (21236.2) | 363 (164.7) |
| UltraTech 8212 | 66 x 15 x 1 (20.1 x 4.6 x .3) | 7405 (28031) | 464 (210.5) |
COPOLYMER-2000 MATERIAL SPECS
| Reinforced | English | Metric | Testing Method |
|---|---|---|---|
| Base Fabric Type | Polyester | - | - |
| Base Fabric Weight (nominal) | 3.0 oz/yd2 | 102 g/m2 | - |
| Finished Coated Weight | 28.0 ± 2 oz/yd2 | 950 ± 70 g/m2 | ASTM D751 |
| Thickness | 30 mils nominal | 0.76 mm nominal | ASTM D751 |
| Trapezoid Tear | 30/30 lbf nominal | 133/133 N nominal | ASTM D4533 |
| Grab Tensile | 250/200 lbf min | 1112/890 N min. | ASTM D751 Grab Method |
| Hydrostatic Resistance | 300 psi min | 2.06 MPa min | ASTM D751, Procedure A |
| Adhesion | 10 lbf/in min | 9.0 daN/5 cm min. | ASTM D751 Dielectric Seam |
| Cold Crack | Pass @ -25° F | Pass @ -32° C | ASTM D2136 1/8 in mandrel, 4 hr. |
| Puncture Resistance | 50 lbf typical | 225 N typical | ASTM D4833 |
| Dead Load | 2 in seam, 4 hr, 1 in strip 100 lbf @ 70° F 50 lbf @ 160° F |
5 cm seam, 4 hr, 2.5 cm strip 445 N @ 21° C 220 N @ 70° C |
ASTM D751 |
Drive Over Spill Containment Berm Applications
The portable, collapsible spill containment berm is great for jobsites that require portable, effective containment for 55-gallon drums, IBC totes, and machinery or equipment. Easily drive-in and drive-out to capture leaks or spills for safe and effective containment to keep you in compliance. Listed under our specifications, the dimensions (ft. (m)) of the Stake Wall Model spill berm ranges from 6 x 4 x 1 (1.8 x 1.2 x .3) to 66 x 15 x 1 (20.1 x 4.6 x .3). Custom sizes are available for you to find the exact right size. The Stake Wall Model spill berm is a portable spill containment solution that keeps you in compliance with regulations. Move the spill berm around your jobsite as needed to protect against leaking equipment and safely contain accidental spills.
Accessories to use with your collapsible spill berm are essential for prolonging the life and use of the spill containment product. Some accessories include the Ground Cloth, Track Belts, and Ultra Berm Repair Kit. See our frequently asked questions below for more information.
UltraTech Spill Berm FAQs
We carry so many options for true drive-in and drive-out spill berms that knowing which one to use can be confusing. First, we recommend you see the Drive Through Spill Berm Selection Guide to help you determine what your exact needs are concerning spill containment. You can also see the Drive-Though Spill Berm overview page for more information. You'll want to consider the following things in making your decision: budget, sidewall height, and dimensions. Once you know what your needs are in these areas, you can give us a Call at 863-261-8388 and we'll help you get the drive-through spill containment berm that you need.
Having the right accessories to use with your collapsible spill containment berm will help you prolong the life of your spill containment product, allowing you to stay in compliance without having to make more purchases than you need to. The accessories you should consider using with your spill containment are: the Ground Cloth, Track Belts, and Ultra Berm Repair Kit. The Ground Cloth helps keep a healthy barrier between the bottom of the spill berm and the ground that it lies on. With a Ground Cloth, objects that you might have missed wont tear or damage the bottom of the spill berm, causing unforeseen leaks and spills. The Track Belts keep the top of the spill berm safe from heavy vehicular traffic. Because the Stake Wall model is a true drive-in and drive-out spill berm, you might expect there to be a lot of tires driving over the berm. Track Belts help prolong the life of your spill berm. The Ultra Spill Berm Repair Kit comes with a tool box, various patches, and a heat gun for you to make repairs of your spill containment berm.
