Compact UltraTech Spill Berm
UltraTech 8613 Compact Model

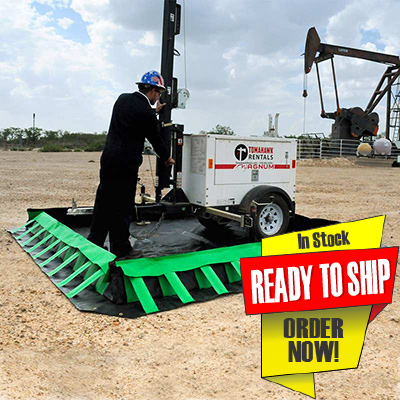

Compact UltraTech Spill Berm provides heavy duty containment for tanker trucks, drums, generators, IBCs, frac tanks and other stationary equipment and containers. Made from durable Copolymer-2000, the compact model berm is set up quickly and easily. Compact, lightweight, and portable, there's no inflation required. All you need to do is lower the sidewalls to allow tanks into the Compact Spill Containment Berm. Ultratech 8609, Ultratech 8613, and Ultratech 8680 are the most commonly requested sizes for the Compact Spill Berm Model, but for a full listing of preset sizes see the chart below. Custom sizes are also available. For more information on our Tank Secondary Containment, Contact Us or Call Us at 863-261-8388.
Our friendly staff is here to help you get the exact product you need!
Call Us! 1-863-261-8388or Contact us for additional information.
Compact UltraTech Spill Berm Features
- Copolymer-2000 Material
- Meets SPCC and EPA Regulations
- Attached Aluminum Struts in Sidewalls
Compact UltraTech Spill Berm Benefits
- Compact, Lightweight, Portable Design
- Custom Sizes Available
- Durable, Rugged Materials and Construction
Compact Spill Berm Model Details

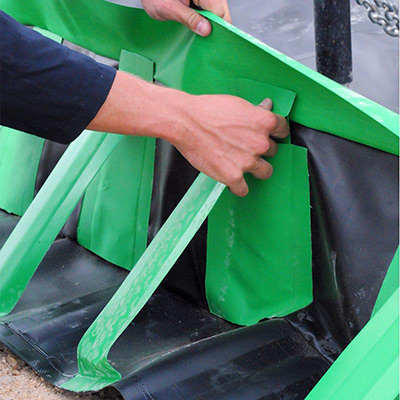

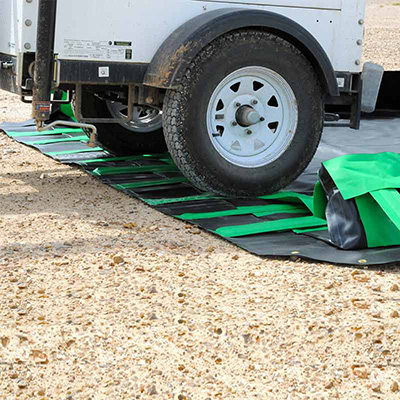

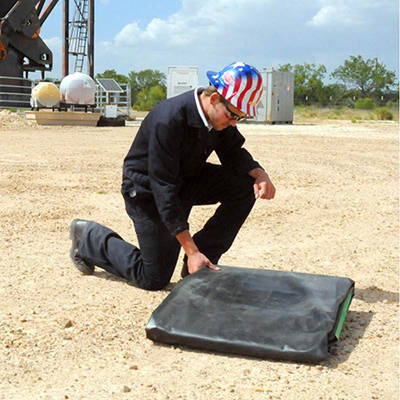

The Compact Model Spill Berm from UltraTech (8613) successfully stores tanker trucks, drums, generators, IBCs, frac tanks, and other equipment and containers, catching spills and leaks that could harm the ground and surrounding environment. Made from rugged Copolymer-2000 material, the Compact Model Spill Berm is lightweight and portable, allowing you to take it from jobsite to jobsite. Custom sizes are available, depending on your spill containment needs. The larger the Compact Model Spill Berm, the larger the equipment it can handle. Smaller sizes of spill berm will successfully contain drums, tanks, generators, compressors, and other pieces of equipment prone to leaks. The sidewalls can be quickly lowered manually to allow vehicles and other machinery to enter the spill containment berm. Attached aluminum struts insert into the sleeves along the sidewalls. When finished using the berm for containment purposes, you can sweep it out, making sure it is dry and free of contaminants, fold it and store it in a clean, dry place. The Compact Model Spill Berm meets EPA 40 CFR 264.175 Containment of Containers Containing Free Liquid and SPCC - Spill Prevention, Control and Countermeasure Act.
UltraTech Compact Model Spill Berm Specs
| Part # | Dimensions ft. (m) | Capacity Gal. (L) | Weight lbs. (kg) |
|---|---|---|---|
| UltraTech 8609 | 6 x 4 x 1 (1.8 x 1.2 x .3) | 179 (677.6) | 34 (15.4) |
| UltraTech 8610 | 6 x 6 x 1 (1.8 x 1.8 x .3) | 269 (1018.3) | 39 (17.7) |
| UltraTech 8611 | 10 x 10 x 1 (3 x 3 x .3) | 748 (2831.5) | 72 (32.7) |
| UltraTech 8680 | 20 x 10 x 1 (6.1 x 3 x .3) | 1496 (5663) | 96 (43.5) |
| UltraTech 8681 | 30 x 10 x 1 (9.1 x 3 x .3) | 2244 (8494.5) | 201 (91.2) |
| UltraTech 8682 | 40 x 10 x 1 (12.2 x 3 x .3) | 2992 (11326) | 257 (116.6) |
| UltraTech 8683 | 50 x 10 x 1 (15.2 x 3 x .3) | 3740 (14157.4) | 312 (141.5) |
| UltraTech 8684 | 12 x 12 x 1 (3.7 x 3.7 x .3) | 1077 (4076.9) | 111 (50.3) |
| UltraTech 8685 | 20 x 12 x 1 (6.1 x 3.7 x .3) | 1795 (6794.8) | 158 (71.7) |
| UltraTech 8686 | 30 x 12 x 1 (9.1 x 3.7 x .3) | 2692 (10190.3) | 216 (98) |
| UltraTech 8687 | 40 x 12 x 1 (12.2 x 3.7 x .3) | 3590 (13589.6) | 274 (124.3) |
| UltraTech 8688 | 50 x 12 x 1 (15.2 x 3.7 x .3) | 4488 (16988.9) | 333 (151) |
| UltraTech 8612 | 60 x 12 x 1 (18.3 x 3.7 x .3) | 5385 (20384.4) | 335 (152) |
| UltraTech 8689 | 15 x 15 x 1 (4.6 x 4.6 x .3) | 1683 (6370.8) | 147 (66.7) |
| UltraTech 8690 | 20 x 15 x 1 (6.1 x 4.6 x .3) | 2244 (8494.5) | 179 (81.2) |
| UltraTech 8691 | 30 x 15 x 1 (9.1 x 4.6 x .3) | 3366 (12741.7) | 243 (110.2) |
| UltraTech 8692 | 40 x 15 x 1 (12.2 x 4.6 x .3) | 4488 (16988.9) | 306 (138.8) |
| UltraTech 8613 | 50 x 15 x 1 (15.2 x 4.6 x .3) | 5610 (21236.2) | 317 (143.8) |
| UltraTech 8614 | 66 x 15 x 1 (20.1 x 4.6 x .3) | 7405 (28031) | 404 (183.3) |
COPOLYMER-2000 MATERIAL SPECS
| Reinforced | English | Metric | Testing Method |
|---|---|---|---|
| Base Fabric Type | Polyester | - | - |
| Base Fabric Weight (nominal) | 3.0 oz/yd2 | 102 g/m2 | - |
| Finished Coated Weight | 28.0 ± 2 oz/yd2 | 950 ± 70 g/m2 | ASTM D751 |
| Thickness | 30 mils nominal | 0.76 mm nominal | ASTM D751 |
| Trapezoid Tear | 30/30 lbf nominal | 133/133 N nominal | ASTM D4533 |
| Grab Tensile | 250/200 lbf min | 1112/890 N min. | ASTM D751 Grab Method |
| Hydrostatic Resistance | 300 psi min | 2.06 MPa min | ASTM D751, Procedure A |
| Adhesion | 10 lbf/in min | 9.0 daN/5 cm min. | ASTM D751 Dielectric Seam |
| Cold Crack | Pass @ -25° F | Pass @ -32° C | ASTM D2136 1/8 in mandrel, 4 hr. |
| Puncture Resistance | 50 lbf typical | 225 N typical | ASTM D4833 |
| Dead Load | 2 in seam, 4 hr, 1 in strip 100 lbf @ 70° F 50 lbf @ 160° F |
5 cm seam, 4 hr, 2.5 cm strip 445 N @ 21° C 220 N @ 70° C |
ASTM D751 |
Compact UltraTech Spill Berm Downloads
Compact Model Spill Berm Applications
Compact Model Spill Berm from UltraTech (8613, 8609, 8680, et al) are made with durable fabric and components able to withstand the harshness that construction sites, facilities, and other jobsites can often have. The smaller sizes of the Compact Model spill berm can easily contain 55-gallon drums, tanks, generators, compressors, gas containers, and other stationary pieces of equipment. The larger sizes of the Compact Model Containment Berms can handle frac tanks, tanker trucks, IBCs, and other larger pieces of equipment. When moving equipment in and out of the Compact Model Spill Berm, having right accessories will extend the life of your spill containment berm. Track Belts will protect the top of the spill berm as tires go over it. A Ground Tarp will protect the bottom of the spill berm from any debris that could hard, puncture, or tear the bottom of the spill containment berm. If you do find that your spill containment berm has been damaged, you can use the Ultra Berm Repair Kit to patch tears and punctures. For more information on what accessories we offer, see our Spill Berm Accessories page.
Compact Model Spill Containment Berms FAQs
Yes, you can order custom sizes for your UltraTech Spill Containment Berm. You can also order custom heights for your spill containment berm, depending on the style and model. For more information on how we can help you, call us at 863-261-8388.
The Compact Model Spill Berm is made from heavy duty Copolymer 2000 fabric that catches, spills, leaks, and drips from vehicles and machinery containing liquids that could harm the environment. Depending on the size of the berm, you could have a containment capacity of over 7 thousand gallons. The Compact Model spill berm keeps you in compliance with these regulations: EPA 40 CFR 264.175 Containment of Containers Containing Free Liquid and SPCC - Spill Prevention, Control and Countermeasure Act.
