Extra Large Catch Basin Filter
Ultra Drain Guard – High Capacity
This extra large catch basin filter is a solution to capturing high volumes of silt and sediment, filtering oil and hydrocarbons, and keeping your worksite in compliance with regulations: Stormwater Management Regulation 40 CFR 122.26 & National Pollutant Discharge Elimination System (NPDES). The High Capacity Model Ultra Drain Guard can hold up to 300 lbs. of silt, sediment, dirt and debris. It also absorbs up to 1.9 gallons of oil and hydrocarbons. For other sizes and options, see: Catch Basin Filtration Products.
We provide the best prices possible, fast shipping directly to you, and knowledgeable representatives to answer your questions. Call us for more information about catch basin filtration products! Call us at 863-261-8388 for more information about catch basin filter options!
Our friendly staff is here to help you get the exact product you need!
Call Us! 1-863-261-8388or Contact us for additional information.
Extra Large Ultra Drain Guard Features
- 60" x 60" Filter Skirt Fits almost any drain (up to 54" x 54")
- Holds up to 300 lbs. of Silt and Sediment
- 1,000 GPM Flow Rate
Extra Large Ultra Drain Guard Benefits
- High Capacity Sediment Capture and Filtration
- Wide Straps for Removal
- Heavy Duty Construction
High Capacity Model Ultra Drain Guard Details

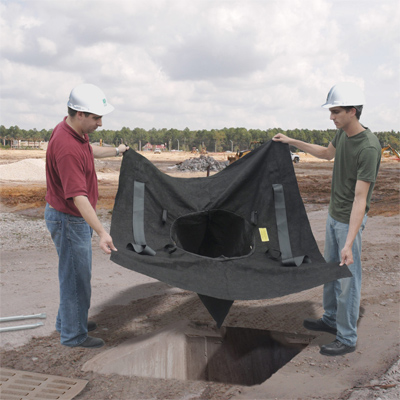

For storm drains located in areas that receive a high volume of silt and sediment in stormwater runoff, you want to make sure the drainage basin filter can stand up to heavy loads and pollutants. The High Capacity Model Ultra Drain Guard can hold up to 300 lbs. of silt, sediment, and debris, as well as filter hydrocarbons and oil. Made of heavy duty, needle punched geotextile, the Extra Large Storm Drain Filter has a 60" x 60" skirt and can fit drains up to 54" x 54" in size. Excess material can be trimmed if you so desire. When the unit is full, it could be extremely heavy because of its large capacity. For this reason, the High Capacity Model Drain guard is outfitted with large, 3" wide polyester handling straps.
Find out more about all the kinds of drain guards we carry by watching our video below.
For faster and easier installation and removal, we recommend using retainer bars that will hold the large Storm Drain Filter in place. Because of the size and weight when full, we recommend use of a backhoe, forklift, or other equipment to remove the High Capacity Model Drain Guard from the storm drain catch basin.
Grate lifters (See Below in Featured Products) make removing the storm drain grate a job that one person can handle quickly and with ease. We also carry the more traditional grate hooks, to make sure your crew has the tools they need to get the job done.
High Capacity Model Ultra Drain Guard Specs
| Part Number | Dimensions in. (mm) | Weight lbs. (kg) | Containment Capacity gal. (L) | Weight Capacity UDL (lbs) |
|---|---|---|---|---|
| Ultratech 9393 | 60 x 60 x 35 (1524 x 1524 x 889) | 2 (.9) | Up to 1.9 gallons (7 L) of Oil | Up to 300 lbs. (136 kg) of Sediment |
Non-woven, Polypropylene Geotextile Material Specifications
| Properties | ASTM Test | Value |
|---|---|---|
| Grab Tensile | D 4632 | 205 lbs |
| Elongation | D 4632 | 50% |
| Trapezoid Tear | D 4533 | 85 lbs |
| Puncture | D 4833 | 525 lbs |
| CBR Puncture | D 6241 | 600 lbs |
| Mullen Burst | D 3786 | 420 psi |
| Permittivity | D 4491 | 1.4 sec-1 |
| A.O.S. (U.S. sieve no.) / Microns | D 4751 | 80 / 180 |
| UV Stability (strength retained %) 500 hrs | D 4355 | 70% |
| Fabric Weight (oz/yd2) (typical) | D 5261 | 8 oz/yd2 |
| Flow (through material) Flow (bypass ports gpm) * Flow (bypass ports cfs) * |
D 4491 | 90 gpm/ft2 770 gpm 1.7 cfs |
* Larger bypass flow rate designs are available
Downloads
Catch Basin Selection Guide (PDF)
Storm Drain BMPs (PDF)
Extra Large Catch Basin Filter Applications
Big jobsites that have to deal with large amounts of silt and sediment need storm drain BMPs that are up to the task. The High Capacity Model Drain Guard is perfect for jobsites experiencing large amount of stormwater runoff and pollutants. More than just the 300 lbs. capacity of the Extra Large Catch Basin Filter, this drain guard can also filter hydrocarbons and oils that leak from machinery and vehicles. All of this keeps your site in compliance with federal stormwater regulations. For cities wanting to catch sit and sediment from stormwater runoff, the High Capacity model Drain Guard will be the perfect stormwater BMP for storm drains around busy streets, intersections, and roadway construction.
High Capacity Drainage Basin FAQs
In three ways, the High Capacity Drain Guard compares with the standard Ultra Drain Guard: oil absorption, dimensions, and sediment load. The dimensions of the High Capacity Drain Guard are 60" x 60" x 35" and the dimensions of the standard Drain Guard are 48" x 36" x 18". The oil absorption capacity of the standard Ultra Drain Guard is .87 gallons and the max sediment load is 40 lbs. For the High Capacity Drain Guard, the oil absorption limit is 1.9 gallons and the max sediment load is 300 lbs.
The handling straps of the High capacity Ultra Drain Guard are meant to assist you in the installation and removal of your drain guard. Additionally, you can purchase retainer bars from us to insert in the handling straps for easy installation and removal when the High Capacity model Drain Guard is full. The retainer bars prevent the filter from dropping into the basin when the grate is lifted.
