IBC Secondary Containment Hard Top Pallet
IBC Tote Spill Containment to Keep You in Compliance
IBC (Intermediate Bulk Container) secondary containment is best provided with the Ultra hard top spill pallets for large containers. Ultra hard top spill pallets come in standard models for up to five or more pallets. See the Hard Top Spill Pallet instructional video below.
We provide the best prices possible, fast shipping directly to you, and knowledgeable representatives to answer your questions. Call us for more information about spill pallet options!
Our friendly staff is here to help you get the exact product you need!
Call Us! 1-863-261-8388or Contact us for additional information.
IBC Spill Containment Pallet Features
- All-Polyethylene Construction
- Swing-Out Doors for Safe Unloading
- Rolling Top, Bottom Sump
IBC Spill Containment Pallet Benefits
- Complies with Spill Containment Regulations
- Low Profile Storage Options
- Rust and Corrosion-Resistant Material
Intermediate Bulk Container Details
For spill containment that provides you with total protection for your IBCs outdoors, a hardtop spill pallet can safely store large containers from the elements. IBC tote spill containment can prevent others from gaining unauthorized access to your IBC or tank as well.

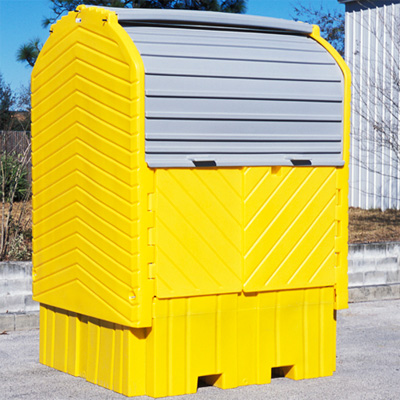

Ultra Hard Top Steel Model

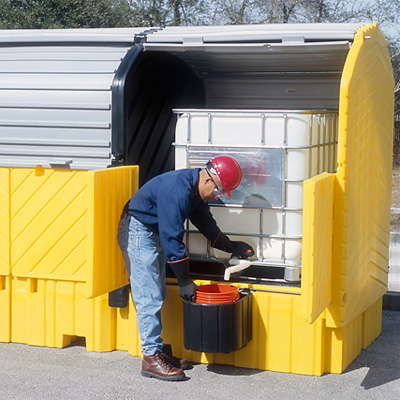

Ultra Hard Top Twin IBC Spill Pallet
Hard Top 55-Gallon Drum Containment
IBC secondary containment comes in three models:
- Standard Ultra hard top spill pallets
- Twin Ultra hard top spill pallets
- Modular Ultra hard top spill pallets
IBC (Intermediate Bulk Container) secondary containment is made from an all-polyethylene construction that makes it rust-resistant and corrosion-resistant. IBC tote spill containment pallets feature doors that swing out for easy storage and access. The rolltop keeps the elements away from your IBCs, totes, and large containers. IBC containment unit models are chemical resistant to a wide range of chemicals like acids, solvents, and oils.
The IBC spill containment pallet is weatherproof. During moments of intense gusts and rainfall, the interior of the IBC containment pallet should always be checked after these times of intense weather. The polyethylene construction of the IBC containment unit is also UV resistant.

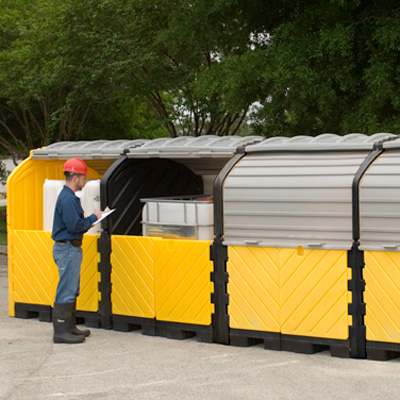

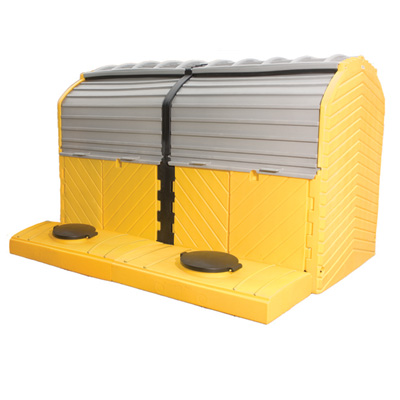

The intermediate bulk container pallet can be lifted by a forklift to move it on your jobsite. The twin model of the Ultra hard top spill pallets allows you to store two IBCs at the same time. The economical approach to storing IBC tanks or drums. Each side of the IBC containment unit can hold 8,000 lbs. The Twin IBC spill containment pallet can hold two IBC tanks in the same model, but sometimes you need to store multiple tanks without taking up too much space. Modular IBC spill containment pallet models can hold up to 5 tanks, through connecting walls and sharing containment sumps by use of flow-through bulkhead fittings.
Ultra-IBC Hard Top Spill Pallets can come with or without a drain. Ask us for more information!
IBC Ultra Hard Top Spill Pallet Dimensions Per Model
- Standard Ultra hard top spill pallets: 64½ x 62 x 96 (1,639 x 1,575 x 2,439)
- Twin Ultra hard top spill pallets: 128 x 67 x 96 (3,251 x 1,702 x 2,438)
- (5-Tank) Modular Ultra hard top spill pallets: 312 x 62 x 79 (7,925 x 1,575 x 2,007)
Ultra-IBC Hard Top Spill Pallet
| Part Number | Ultratech 1162 |
|---|---|
| Dimensions in. (mm.) | 64½ x 62 x 96 (1,639 x 1,575 x 2,439) (without drain) |
| Weight | 525.0 lbs. (239.0 kg) |
| Containment Capacity | 365 Gallons (1,382 L) |
| Uniformly Distributed Weight | 8,500 lbs. (3,856 kg) |
Ultra-Twin IBC Hard Top Spill Pallet
| Part Number | Ultratech 1148 |
|---|---|
| Dimensions in. (mm.) | 128 x 67 x 96 (3,251 x 1,702 x 2,438) |
| Weight | 1,067.0 lbs. (484.0 kg) |
| Containment Capacity | 535 Gallons (2,025 L) |
| Uniformly Distributed Weight | 8,000 lbs. (3,629 kg) UDL / page |
Ultra-Modular IBC Spill Pallets (2-Tank Outdoor Model)
| Part Number | Ultratech 1165 |
|---|---|
| Dimensions in. (mm.) | 126 x 93 x 79 (3,201 x 2,363 x 2,007) |
| Weight lbs. (kg) | 881.0 (400 .0) |
| Containment Capacity gal. (L) | 280 (1,060) |
| Uniformly Distributed Weight lbs. (kg) UDL per Pallet | 9,000 (4,083) |
Ultra-Modular IBC Spill Pallets (3-Tank Outdoor Model)
| Part Number | Ultratech 1166 |
|---|---|
| Dimensions in. (mm.) | 188 x 93 x 79 (4,776 x 2,363 x 2,007) |
| Weight lbs. (kg) | 355 (1,344) |
| Containment Capacity gal. (L) | 1,258 (571.0) |
| Uniformly Distributed Weight lbs. (kg) UDL per Pallet | 9,000 (4,083) |
Ultra-Modular IBC Spill Pallets (4-Tank Outdoor Model)
| Part Number | Ultratech 1167 |
|---|---|
| Dimensions in. (mm.) | 250 x 93 x 79 (6,350 x 2,363 x 2,007) |
| Weight lbs. (kg) | 365 (1,382) |
| Containment Capacity gal. (L) | 1,603 (728.0) |
| Uniformly Distributed Weight lbs. (kg) UDL per Pallet | 9,000 (4,083) |
Ultra-Modular IBC Spill Pallets (5-Tank Outdoor Model)
| Part Number | Ultratech 1168 |
|---|---|
| Dimensions in. (mm.) | 312 x 62 x 79 (7,925 x 1,575 x 2,007) |
| Weight lbs. (kg) | 1,948 lbs. (884.0 kg) |
| Containment Capacity gal. (L) | 375 Gallons (1,419 L) |
| Uniformly Distributed Weight lbs. (kg) UDL per Pallet | 9,000 lbs. (4,083 kg) |
IBC Secondary Containment Applications
The IBC secondary containment spill pallet safely stores intermediate bulk container tanks, 55-gallon drums, and other large containers that need to be kept from leaking and spilling. The IBC tote spill containment will keep you in compliance against these leaks and spills. IBC spill containment pallet styles provide economical containment for outdoor IBC storage. Ultra hard top spill pallets provide containment that is weatherproof and exclude most rain and wind. The IBC containment unit can be easily taken apart and cleaned, put back together, and moved via forklift. Spill containment berms can also be of use with IBC containment unit pallets for even more spill containment protection. We also carry steel Ultra hard top spill pallets that come in a single and twin model with lockable doors.
IBC Containment Pallet FAQs
IBC tote spill containment pallets are not completely waterproof, but they are weatherproof. The rolltop will keep water out of your IBC spill containment pallet, but always check your IBC containment unit after weather that has heavy rain and gusts of wind.
There are two forklift pockets on the IBC Ultra hard top spill pallets that can help to move the pallet. We do not recommend moving the IBC containment unit while there is a full tank on top of it. Questions about the IBC spill containment pallet? Give us a call at 1-863-261-8388 for more information or Contact Us through our webform for more information.
