Foam Wall Spill Berms (Mini Berm)
UltraTech Mini Foam Wall Containment Berm
Mini Foam Wall Spill Berms, also known as Duck Pond Spill Berms, are for the small nuisance leaks that can occur around your jobsite and facility. While the majority of our spill containment berms are meant to capture large quantities of spilled liquids, the mini spill berm can capture up to 75 gallons of spills and leaks. Even just a few gallons of spilled contaminants can cost you time and money to clean up. We think that your time and money are better spent on your jobsite and facility, and being productive. Made from durable 18 oz. PVC, the Ultra Mini Foam Wall Spill Berm is convenient, portable, and durable. For more information, give us a call at 863-261-8388.
Our friendly staff is here to help you get the exact product you need!
Call Us! 1-863-261-8388or Contact us for additional information.
Ultra Mini Foam Wall Spill Berm Features
- 18 oz. Durable PVC Fabric
- Foldable Mini Spill Berm
- 75 Gallon Capacity
Ultra Mini Foam Wall Spill Berm Benefits
- Captures Small, Overlooked Leaks and Spills
- Quick, Convenient, Easy-to-Store
- Spill Containment for Gas Cans, Batteries and Small Drums
Want to see how our different spill berms work? Watch our videos below for more information.
Mini Foam Wall Spill Berms Details
Mini Foam Wall Spill Berm Video

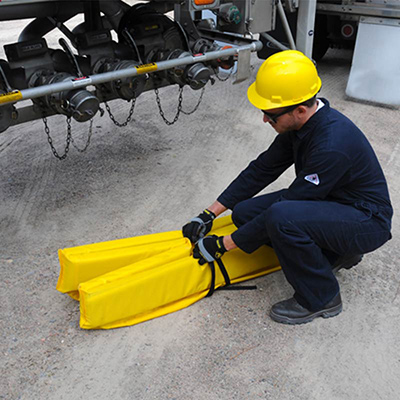

The Ultra Mini Foam Wall Spill Berm is a portable spill containment solution for your jobsite. Made from durable 18 oz. PVC material that provides excellent chemical compatibility, you can be sure that the mini foam wall spill berm will save you money in compliance fees that could occur. Available in several sizes, the Ultra Mini Spill Berm #8854 is foldable and compact for easy storage. However, you can quickly deploy it when leaks and spills occur. When folded down, the mini spill berm is secured with an attached strap. This foldable design allows you to transport it easily around your jobsite and facility. The foam sidewalls are 6 inches high and can be driven over or stepped on for easier equipment and vehicle placement. The mini foam wall spill containment berms have a containment capacity of 75 gallons. Sometimes, it's the little spills and leaks that can catch you off guard when you're transferring fuel from a tank to a truck or simply performing maintenance or repairs. Don't fall out of EPA compliance on your jobsite on accident. Be prepared with a "duck pond" mini spill berm with foam walls.

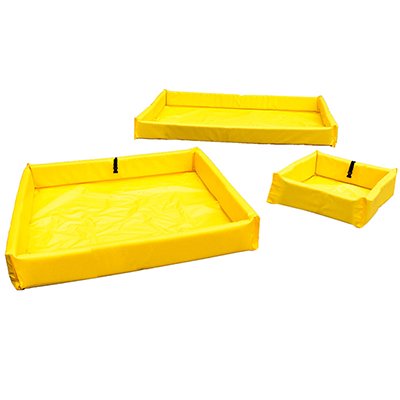

Ultra Mini Foam Wall Model Containment Berm Specs
| Part # | Dimensions ft. (m) | Capacity Gal. (L) | Weight lbs. (kg) |
|---|---|---|---|
| UltraTech 8850 | 2 x 2 x .5 (.6 x .6 x .2) | 15 (56.8) | 3.00 (1.4) |
| UltraTech 8852 | 4 x 4 x .5 (1.2 x 1.2 x .2) | 60 (227.1) | 7.00 (3.2) |
| UltraTech 8854 | 6 x 4 x .5 (1.8 x 1.2 x .2) | 75 (283.9) | 9.00 (4.1) |
18 oz. PVC Materials Specs
| Base Fabric Type | Polyester |
|---|---|
| Base Fabric Weight (nominal) | 5.0 oz/yd2 |
| Finished Coated Weight ASTM D751 |
18 oz/yd2 +2/-1 oz/yd2 |
| Grab Tensile ASTM D751 |
375/350 lbf |
| Strip Tensile ASTM D751 Procedure B |
300/275 lbf/in |
| Adhesion ASTM D751 RF Weld |
10 lbf /in minimum |
| Hydrostatic Resistance ASTM D751 Procedure A |
500 psi |
| Low Temperature ASTM D2136 |
1/8 in mandrel, 4 hr Pass @ -40° F |
| Working Temperature Range ASTM D2136 |
-20°F to 160° F |
| Flame Resistance FMVSS 302 |
Pass 4 in/min |
| Roll Specifics | Width up to 75 in Length 110 yd. |
Ultra Mini Spill Berm 8854 Downloads
Foam Wall Spill Containment Berm Applications

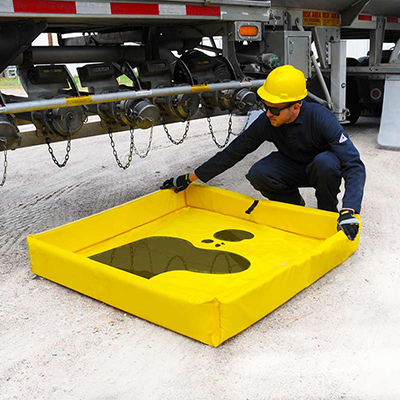

The possibilities are endless when it comes to the Mini Foam Wall Spill Containment Berms. There are so many jobs on a facility site or construction site that involve the transferring of chemicals, fuels, and hazardous liquids. With the UltraTech Mini Foam Wall Containment Berms you can be sure to stay in compliance and be able to capture leaks and spills quickly. The mini spill berm is folded and compact for storage, but it can be quickly opened by undoing the strap and placed on the ground. You can capture leaks that are under trucks and other vehicles. When transferring fuel from a tank to a truck, you can capture any leaks or spills. When completing maintenance or repairs out in the field, you can easily bring the mini foam wall spill berm with you. The UltraTech mini foam wall spill berm can also be used a stationary spill containment berm for small liquid containers, gas cans, drums, small batteries, and compressors.
Foam Wall Spill Berm FAQs
You can refer to our Chemical Compatibility Guide (PDF) for the exact specifications of what chemicals have been tested with the materials we offer. However, the Mini Foam Wall Spill Berm is made from 18 oz. PVC and is just as compatible as our larger spill containment berms.
While the Mini Ultra Foam Wall Spill Containment Berm is extremely versatile, it should only be used for temporary, small spill containment projects like repairs and maintenance or stationary storage of small items like gas cans. However, when it comes to the small, often overlooked leaks and spills on a jobsite, the Ultra Mini Foam Wall Spill Berm is second-to-none. Its compact, foldable frame make it unique and portable.
