Catch Basin Debris Catcher (Recycled Model)
Recycled Drain Guard Catch Basin Filter
The Recycled Model of the Catch Basin Debris Catcher is made of Filter-Tex material to remove oil, gas, hydrocarbons, and sediment from stormwater flow. The Filter-Tex material is 100 percent recycled and is hydrophilic, allowing water to pass through it quickly. The Recycled Model of the Ultra Drain Guard is easy to install. All you need to do is lift the catch basin grate, lower the drain guard catch basin filter in place, and replace the grate. For more information on catch basin filter options, contact us!
We provide the best prices possible, fast shipping directly to you, and knowledgeable representatives to answer your questions--that's our promise. Call us at 863-261-8388 for more information about catch basin filter options!
Our friendly staff is here to help you get the exact product you need!
Call Us! 1-863-261-8388or Contact us for additional information.
Ultra Drain Guard Recycled Model Features
- Made of Recycled Filter-Tex Material
- Oil, Gas, Hydrocarbon Absorption
- Built-In Overflow Ports
Ultra Drain Guard Recycled Model Benefits
- Quick and Easy Installation
- Captures Silt and Sediment
- Superior Water Flow Rate
Ultra Drain Guard Recycled Details

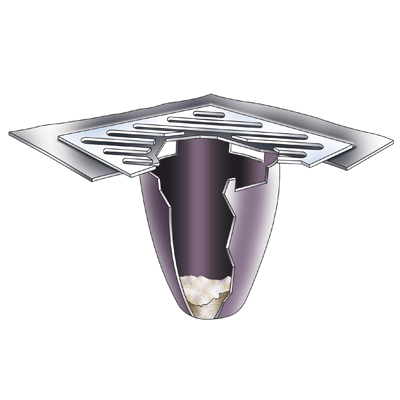

The Ultra Drain Guard Recycled Model is made from Ultra-Filter-Tex, a material made out of 100 percent recycled material that is hydrophilic. The hydrophilic nature of the Filter-Tex material allows water to pass through it quickly, while oils and hydrocarbons are filtered and caught. Silt, sediment, and debris are held in the catch basin debris catcher. While drain guards made with nonwoven geotextile fabric capture debris and sediment, they do not remove oils, gas or other hydrocarbons from the stormwater flow. But, the Ultra Drain Guard - Recycled Model does! Not only is it effective in capturing hydrocarbons, it offers the extra advantage of being made with recycled materials, providing an environmentally friendly option for your Stormwater Protection Plan.
The flow rate of the Filter-Tex material is 151 gal/ft.2 and the Recycled Model of the Ultra Drain Guard is built with overflow ports for those heavy rainfall events. The overflow ports will prevent ponding and flooding. For more information and specifications on this effective stormwater bmp, see below. You can also call us at 863-261-8388.
Recycled Ultra Drain Guard Specs
| Part Number | Quantity | Dimensions in. (mm) | Weight lbs. (kg) | Containment Capacity gal. (L) | Weight Capacity UDL (lbs) |
|---|---|---|---|---|---|
| Ultratech 9378 | 1 | 48 x 36 x 18 (1219.2 x 914.4 x 457.2) | 1 (.5) | Up to 1.26 gal (5 L) of Oil | Up to 40 lbs. (18 kg) of Sediment |
Ultra-Filter-Tex Material Specifications
| Test | Method | Result |
|---|---|---|
| Mass Per Unit Area | ASTM 5261 | 11.0 (341.16) oz/yd. (g/m) |
| Grab Tensile MD | ASTM D-4632 | 118 (53.5) lbs (kg) |
| Grab Tensile TD | ASTM D-4632 | 89 (40.4) lbs (kg) |
| Elongation at Peak MD | ASTM D-4632 | 131 percent |
| Elongation at Peak TD | ASTM D-4632 | 172 percent |
| Wide Width Tensile MD | ASTM D-4595 | 33 (5.89) lbs/in (kg/cm) |
| Wide Width Tensile TD | ASTM D-4595 | 23 (4.11) lbs/in (kg/cm) |
| Elongation at Break MD | ASTM D-4595 | 110 percent |
| Elongation at Break TD | ASTM D-4595 | 156 percent |
| Mullen Burst | ASTM D-3786 | 214 (15) lbs/sq.in (kg/cm2) |
| Puncture Resistance | ASTM D-4833 | 72 (32.7) lbs (kg) |
| Trapezoid Tear Strength MD | ASTM D-4533 | 64 (29) lbs (kg) |
| Trapezoid Tear Strength TD | ASTM D-4533 | 45 (20.4) lbs (kg) |
| Permittivity(Constant Head) | ASTM D-4491 | 2.02 sec-1 |
| Permeability | ASTM D-4491 | 0.72 cm/sec |
| Flow Rate | ASTM D-4491 | 151 (6152)gal/ft2/min. (l/m2/min.) |
| Apparent Opening Size /micron | ASTM D-4751 | 100 140/150 microns U.S. Sieve |
| Hydrocarbon Capacity (nominal) | 1.5 (6.79) gal/yd2 (l/m2 ) |
Receycled Catch Basin Downloads
Catch Basin Selection Guide (PDF)
Storm Drain BMPs (PDF)
Ultra Drain Guard Applications
The Recycled Model Catch Basin Debris Catch is unique in that it is made from 100 percent Ultra-Filter-Tex material. If you need stormwater BMPs that are environmentally-friendly, have a smaller carbon footprint, and are made from recycled materials, then this catch basin filter is a great choice for you, especially if filtering both oil and sediment is something you need to stay in compliance.
Runoff from vehicles and machinery is full of pollutants. Road stormwater drainage needs to be filtered appropriately to address these pollutants for compliance. When used properly, the recycled model drain guard is a recommended Stormwater BMP, and will keep your site in compliant with clean water requirements.
Note: Because the Recycled Model Ultra Drain Guard filters both oil and sediment, you will need to determine what you local regulations require of you when disposing of such chemicals.
Recycled Model Ultra Drain Guard FAQs
Excellent question. Our storm drain guards, depending on the model, capture soil, sediment, trash, debris, hydrocarbons, and oil. The Recycled Model of the Ultra Drain Guard will capture silt, sediment, oil, and hydrocarbons. Our drain guards are proven, effective tools for capturing pollutants that enter storm drains. The Recycled Model can hold up to 40 lbs. of sediment in weight capacity. And we also have storm drain guards that are built to have a higher capacity.

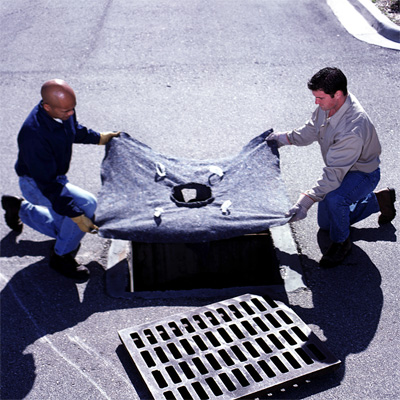

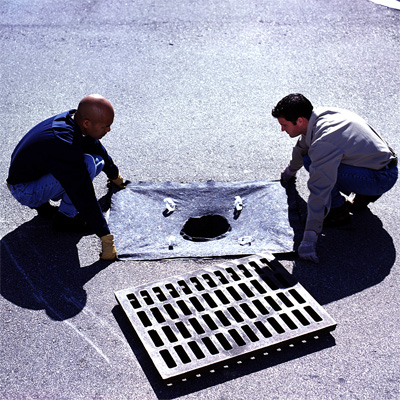

To install the Recycled Model Catch Basin Filter, all you need to do is lift the storm drain grate, place the drain guard in the catch basin, and replace the grate. Sometimes those storm drain grates can be heavy. We have two different tools that can assist you with lifting the storm drain grate. The Grate Lifter and Grate Hook, make lifting a storm drain grate by yourself easier and safer. We also carry Ultra Drain Guard Retainers, which keep your storm drain guard in place even when you remove the grate. For more information, call us at 863-261-8388.
