Ultra Collapsible Wall Model Spill Berm
Collapsible Spill Containment Ultratech 8405

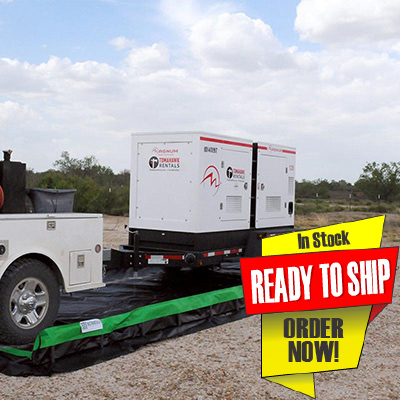

The Ultra Collapsible Wall Model Spill Berm (8405) provides spill containment solutions for drums, vehicles, frac tanks, and various large containers at construction sites and job locations. This collapsible wall spill berm is constructed from Copolymer-2000 and features PVC sidewall support systems that pivot to adjust the height of the sidewalls. The rugged materials that the Collapsible Wall Model Spill Berm is made from makes it compatible with a wide variety of chemicals, providing you with years of spill and leak containment service. For more information on the Secondary Containment Berms for Tanks we offer, Call Us at 863-261-8388.
Our friendly staff is here to help you get the exact product you need!
Call Us! 1-863-261-8388or Contact us for additional information.
Collapsible Spill Containment Berm Details
The Ultra Container Berm Collapsible Wall Model (8405) is easy to set up and take down wherever you need it. The Collapsible Wall Model Ultra Containment Berm is made from rugged Copolymer-2000 with PVC sidewall assemblies that swivel to raise and lower the sidewalls for easy access for vehicles and machinery. The Collapsible Spill Containment Berm is a containment space for tanks, totes, containers, and other stationary equipment pieces that need to be kept in compliance. The Collapsible Model Spill Containment Berm can be used either outdoors or indoors. When used outdoors, you can add the Ultra Self bailer to keep rainwater out of the spill containment berm. For other accessories and additional items to use with the Collapsible Model Spill Containment Berm, see the Applications section below.
The Collapsible Model Spill Containment Berm's rugged materials provide structure and support for years of spill containment. This spill berm keeps you in compliance with EPA 40 CFR 264.175 Containment of Containers Containing Free Liquid and SPCC - Spill Prevention, Control and Countermeasure Act.
Ultratech Collapsible Model Spill Berm Features
- Material: Copolymer-2000 and PVC Assembly Sidewalls
- Manual Take Down and Set-Up
- Spill Containment for Tanks and Stationary Equipment
Ultratech Collapsible Model Spill Berm Benefits
- Rugged, Durable Material and Construction
- Custom Sizes Available
- Indoor or Outdoor Spill Containment
Ultra Containment Berm Collapsible Wall Model Specs
| Part # | Dimensions ft. (m) | Capacity Gal. (L) | Weight lbs. (kg) |
|---|---|---|---|
| UltraTech 8405 | 6 x 4 x 1 (1.8 x 1.2 x .3) | 179 (677.6) | 43 (19.5) |
| UltraTech 8403 | 6 x 6 x 1 (1.8 x 1.8 x .3) | 269 (1018.3) | 46 (20.9) |
| UltraTech 8400 | 10 x 10 x 1 (3 x 3 x .3) | 748 (2831.5) | 70 (31.8) |
| UltraTech 8550 | 20 x 10 x 1 (6.1 x 3 x .3) | 1496 (5663) | 96 (43.5) |
| UltraTech 8551 | 30 x 10 x 1 (9.1 x 3 x .3) | 2244 (8494.5) | 132 (59.9) |
| UltraTech 8552 | 40 x 10 x 1 (12.2 x 3 x .3) | 2992 (11326) | 170 (77.1) |
| UltraTech 8553 | 50 x 10 x 1 (15.2 x 3 x .3) | 3740 (14157.4) | 209 (94.8) |
| UltraTech 8554 | 12 x 12 x 1 (3.7 x 3.7 x .3) | 1077 (4076.9) | 69 (31.3) |
| UltraTech 8555 | 20 x 12 x 1 (6.1 x 3.7 x .3) | 1795 (6794.8) | 103 (46.7) |
| UltraTech 8556 | 30 x 12 x 1 (9.1 x 3.7 x .3) | 2692 (10190.3) | 142 (64.4) |
| UltraTech 8557 | 40 x 12 x 1 (12.2 x 3.7 x .3) | 3590 (13589.6) | 183 (83) |
| UltraTech 8558 | 50 x 12 x 1 (15.2 x 3.7 x .3) | 4488 (16988.9) | 224 (101.6) |
| UltraTech 8404 | 60 x 12 x 1 (18.3 x 3.7 x .3) | 5385 (20384.4) | 323 (146.5) |
| UltraTech 8559 | 15 x 15 x 1 (4.6 x 4.6 x .3) | 1683 (6370.8) | 95 (43.1) |
| UltraTech 8560 | 20 x 15 x 1 (6.1 x 4.6 x .3) | 2244 (8494.5) | 119 (54) |
| UltraTech 8561 | 30 x 15 x 1 (9.1 x 4.6 x .3) | 3366 (12741.7) | 164 (74.4) |
| UltraTech 8562 | 40 x 15 x 1 (12.2 x 4.6 x .3) | 4488 (16988.9) | 210 (95.3) |
| UltraTech 8401 | 50 x 15 x 1 (15.2 x 4.6 x .3) | 5610 (21236.2) | 319 (144.7) |
| UltraTech 8402 | 66 x 15 x 1 (20.1 x 4.6 x .3) | 7405 (28031) | 420 (190.5) |
COPOLYMER-2000 MATERIAL SPECS
| Reinforced | English | Metric | Testing Method |
|---|---|---|---|
| Base Fabric Type | Polyester | - | - |
| Base Fabric Weight (nominal) | 3.0 oz/yd2 | 102 g/m2 | - |
| Finished Coated Weight | 28.0 ± 2 oz/yd2 | 950 ± 70 g/m2 | ASTM D751 |
| Thickness | 30 mils nominal | 0.76 mm nominal | ASTM D751 |
| Trapezoid Tear | 30/30 lbf nominal | 133/133 N nominal | ASTM D4533 |
| Grab Tensile | 250/200 lbf min | 1112/890 N min. | ASTM D751 Grab Method |
| Hydrostatic Resistance | 300 psi min | 2.06 MPa min | ASTM D751, Procedure A |
| Adhesion | 10 lbf/in min | 9.0 daN/5 cm min. | ASTM D751 Dielectric Seam |
| Cold Crack | Pass @ -25° F | Pass @ -32° C | ASTM D2136 1/8 in mandrel, 4 hr. |
| Puncture Resistance | 50 lbf typical | 225 N typical | ASTM D4833 |
| Dead Load | 2 in seam, 4 hr, 1 in strip 100 lbf @ 70° F 50 lbf @ 160° F |
5 cm seam, 4 hr, 2.5 cm strip 445 N @ 21° C 220 N @ 70° C |
ASTM D751 |
Ultra Collpasible Berm Downloads
Ultra Spill Berm Collapsible Wall Model Applications
The Collapsible Model Spill Berm provides spill containment for stationary machinery, equipment, tanks, containers, totes, drums and more. Construction sites have many pieces of equipment and machinery that need to be stored in a compliant way to catch spill and leaks of oil, gas, and other chemicals. The Collapsible Model Spill Berm requires manual set-up and take down for vehicles and machinery to enter the spill containment berm. The Collapsible Model Spill Berm can be easily stored when not in use.

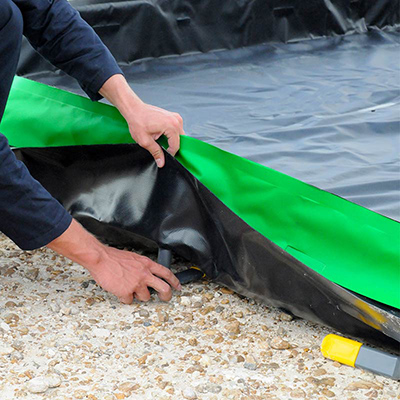

To deploy the Collapsible Model Spill Containment Berm:
- 1. Select a level area and be sure that ground is swept clean of debris and sharp objects. The use of a ground tarp is recommended.
- 2. Place the folded Berm at the setup location. Do not drag the folded Berm.
- 3. Unfold Berm and position as desired.
- 4. Position the frame legs facing toward the inside of the Berm.
- 5. If Track Belts are being used, place these in the unit at this time.
- 6. The Collapsible Wall Model Berm is now ready for use.
Use the Collapsible Model Spill Berm for spill containment either indoors or outdoors. When using the spill berm outdoors, you can use the Ultra Self Bailer to remove rainwater from your spill containment berm. Other accessories and additional tools you can use with your spill berm are Track Belts, Ground Cloth, and the Ultra Berm Repair Kit. Track Belts protect the top of the spill berm when vehicles drive over the material. The Ground Cloth will protect the underside of the spill containment berm from any debris or materials that could cause punctures or tears. The Ultra Repair Kit is made up a toolbox, industrial heat gun, and a series of patches to mend tears in the material.
UltraTech Spill Containment Berm FAQs
Yes, you can use the Collapsible Wall Model spill containment berm for outdoor spill containment. One of the main issues with outdoor spill containment is rainwater entering the spill containment berm. If you are using this spill berm for short term spill containment outdoors and want to make sure that rainwater is emptied out safely, then we recommend you use the Ultra Self-Bailer with your spill berm. The Ultra Self-Bailer drains rainwater passively from the berm but will shutoff in the event of a spill. For outdoor spill containment that is more permanent and secure, we recommend you see our Hardtop Spill Pallets for 55-gallon drums and IBCs.
The Collapsible Model Spill Berm has rugged sidewalls that must be raised and lowered when vehicles and machinery enter the spill berm. This makes it great for tanks and equipment that is stationary and needing containment for longer periods of time. Track Belts are still a great accessory and tool for this spill containment berm to protect it from the vehicles that do enter it. However, we do not recommend you keep the Track Belts in place once the sidewalls have been raised. If you're looking for a Drive-Over Spill Containment Berm where the Track Belts can be used continually, see our collection of Drive-over Spill Containment Berms.
