Catch Basin Sediment Bags
Reusable Drain Guard for Sediment Control
The Ultratech Reusable catch basin sediment bags for superior stormwater management are made for high capacity sediment control on construction sites that are plagued by large amounts of silt-laden stormwater runoff. The reusable drain guard sediment bags for catch basins can hold up to 500 pounds of sediment and silt and have a flow rate of 695 gallons per minute per square foot for superior stormwater management. The Ultra Reusable Catch Basin Sediment Bags also come in a curb style perfect for combination storm drains.
We provide the best prices possible, fast shipping directly to you, and knowledgeable representatives to answer your questions. Call us for more information about catch basin filter options!
Our friendly staff is here to help you get the exact product you need!
Call Us! 1-863-261-8388or Contact us for additional information.
Catch Basin Sediment Bags Features
- Woven Polypropylene Geotextile Material
- Accumulation Pocket 36" Deep
- Holds 500 lbs. of Soil, Sediment, Sand and Dirt
Catch Basin Sediment Bags Benefits
- Reusable and High Strength
- Removal with Backhoe and Other Equipment
- Custom Sizes Available
Reusable Drain Guard Details: Standard Model and Curb Style Model
The heavy-duty reusable catch basin filter bags are economical stormwater management options for retaining sediment on construction sites. Made with high strength woven polypropylene material, this catch basin filter bag has a capacity of up to 500 lbs. For capturing sediment and silt, the reusable drain guard is a great choice. However, the catch basin filter bags will not hold oil and hydrocarbons as they are made with polypropylene material and not oil absorbing geotextile material. The reusable drain guard is an economical choice for construction sites as the catch basin sediment bags can be cleaned out and properly disposed of and reused. Catch basin sediment bags with deep accumulation pockets of 36" require less maintenance and emptying.

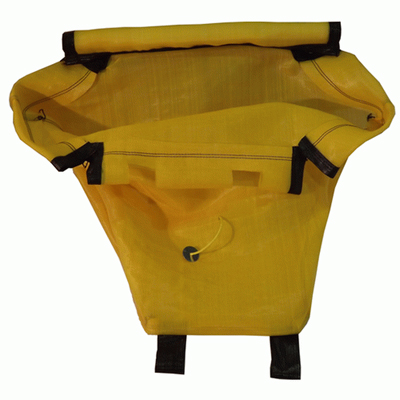

The reusable drain guard comes in a curb style for stormwater pollution control in combination storm drains. The curb style of the reusable drain guard is similar to the standard model, but features a design that makes it suitable for combination storm drains. The curb style weighing more than the standard model. The reusable drain guard is an economical choice for construction sites as the catch basin sediment bags can be cleaned out and properly disposed of and reused. Catch basin sediment bags with deep accumulation pockets of 36" require less maintenance and emptying.
- Sediment Capture: 500 lbs.
- Collection Area: 36" Depth
- Flow Rate: 695 gals/min/sq. ft
Ultratech Ultra Reusable Drain Guard Specifications
| Part Number | Style | Weight | Dimensions in. (mm) |
|---|---|---|---|
| Ultratech 9341 | Standard Catch Basin | 1 lbs. (0.5 kg) | 24 x 24 (610 x 610) |
| Ultratech 9340 | Standard Catch Basin) | 1 lbs. (0.5 kg) | 24 x 36 (610 x 915) |
| Ultratech 9342 | Standard Catch Basin | 1 lbs. (0.5 kg) | 24 x 48 (610 x 1,220) |
Ultratech Ultra Reusable Drain Guard Specifications (Curb Style)
| Part Number | Style | Weight | Dimensions in. (mm) |
|---|---|---|---|
| Ultratech 9332 | Curb-Style | 3.0 (1.5) | 24 x 24 (610 x 610) |
| Ultratech 9330 | Curb-Style | 3.0 (1.5) | 24 x 36 (610 x 915) |
Ultratech Ultra Reusable Drain Guard Material Specifications (Woven Geotextile)
| Properties | ASTM Test | Value |
|---|---|---|
| AOS (U.S. Sieve) | D 4751 | 20 sieve |
| Permeability | D 4491 | .49 cm/ sec |
| Permittivity | D 4491 | 473 sec-1 |
| Flow Rate | D 4491 | 695 gal/min/ft2 |
| Mullen Burst | D 3786 | 542 psi |
| Puncture | D 4833 | 104 lbs. |
| Tensile MD | D 4632 | 237 lbs. |
| Tensile CD | D 4632 | 255 lbs. |
| Trapezoid Tear | D 4533 | 115 lbs. |
Material: Woven Polypropylene Geotextile
Catch Basin Downloads
Catch Basin Selection Guide (PDF)
Storm Drain BMPs (PDF)
Catch Basin Sediment Control Bags Installation
The reusable drain guards have a three-step installation process and a 6-step removal process. Make sure that the catch basin sediment bag flaps are outside the basin, flat, and held in place by the grate. The removal flap pockets should be held down by soil. Once this is accomplished, the reusable drain guard will be out of sight and ready to catch silt and sediment. For the removal of catch basin filter bags, first remove the soil used to cover and hold down the removal flap pockets. If not already inserted, insert the rebar through the pockets. Next remove the storm drain grate. Catch basin sediment bags will then be removed through the rebars with available equipment. Move the full reusable drain guard to the ground for emptying.
At a glance, here is the Catch Basin Sediment Bag installation instructions:
- 1. Remove the Storm Drain Grate
- 2. Install the Reusable Catch Basin Sediment Bag inside the storm drain, making sure the emptying straps are laid flat outside the basin and held in place by the drain grate.
- 3. Replace the storm drain grate, making sure the flap pockets and emptying straps are secured during installation and do not fall into the catch basin.
Sediment Bags for Catch Basins Frequently Asked Questions
The ability of your storm drain gate to hold a full capacity reusable drain guard will be dependent on your specific drain grate, its design, size, and weight. For added reinforcement when using your catch basin sediment bags, rebar can be inserted into the flaps. When you remove the reusable drain guard this rebar will be necessary.
The reusable catch basin sediment bag is not made to absorb oil and hydrocarbons because of its heavy duty materials. These heavy-duty materials that make up the catch basin sediment control filter bag allow it to have a high capacity and durability for silt and sediment on construction sites for stormwater management.
The main attraction of the Ultra Reusable Drain Guard is its ability to hold an incredible amount of sediment and silt. Because of its ability to do this, it needs to be made with polypropylene material to make it very strong and heavy duty. This polypropylene material does not have oil absorbing capabilities. However, we carry a variety of different drain guards that absorb oil and hydrocarbons. For more information, see our Catch Basin Filter Options overview.
