Silt Curtain
Type 2 Silt Curtain for Moving Waters

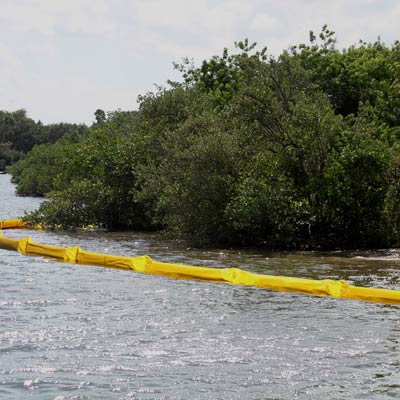

A silt curtain, also referred to as a sediment curtain or turbidity curtain, is a highly effective solution for managing silt and sediment suspended in water. Specifically engineered for areas with moving water, including currents, waves, and tides, these curtains help protect water quality during construction, dredging, or environmental restoration projects.
The Type 2 silt curtain is specifically designed for use in dynamic water conditions. It is recommended for locations experiencing waves up to 2 feet, moderate wind speeds, and currents of up to 1 knot, making it a reliable choice for coastal areas, rivers, and nearshore projects. Durable and versatile, the Type 2 silt curtain ensures optimal performance in challenging environments.
Call us to help you find what you need!
Call Us! 1-863-261-8388or Contact us for additional information.
TYPE 2 SILT CURTAIN DETAILS
Type 2 DOT Silt Curtain Design Details
Type 2 turbidity curtain, the contractor model, is the least expensive of the sediment curtain types offered by One Clarion. They are designed to fit the need for a short-term solution near flowing streams or creeks with lower silt levels. Type 2 turbidity curtain contractor model will prevent your project dust and dirt from spreading downstream. Made from a lighter weight 13 oz fabric and 4-inch floatation devices, this style silt curtain still maintains our high quality standards for your project. Standard lengths available are 50 and 100 feet with a standard depth of between 3 and 10 feet. Need pricing? No problem! Simply call our knowledgeable team at 863-261-8388.
Type 2 Contractor Silt Curtain Design Details
The One Clarion type 2 permeable silt curtain has been designed for moving water up to 1 knot in speed. When the current starts to put pressure on the turbidity curtain, the geotextile panel allows water to filter through while containing the sediment. The permeable silt curtain design features a special 22 oz PVC frame and a monofilament center fabric. It is available with 6, 8, or 12 inch floats and has a standard depth of 3 to 100 feet and standard length of either 50 or 100 feet.
Type 2 Permeable Silt Curtain Design Details
One Clarion's Permeable type 1 silt curtain is different than our other models in how it filters materials. The permeable type 1 turbidity curtain is made from a non woven geotextile fabric instead of the usual PVC fabric. This provides filtering along the length of the silt curtain, filtering turbidity and silt while still allowing a limited amount of water to flow through the curtain skirt. This silt barrier is perfect for calm water applications requiring a shorter length of containment.

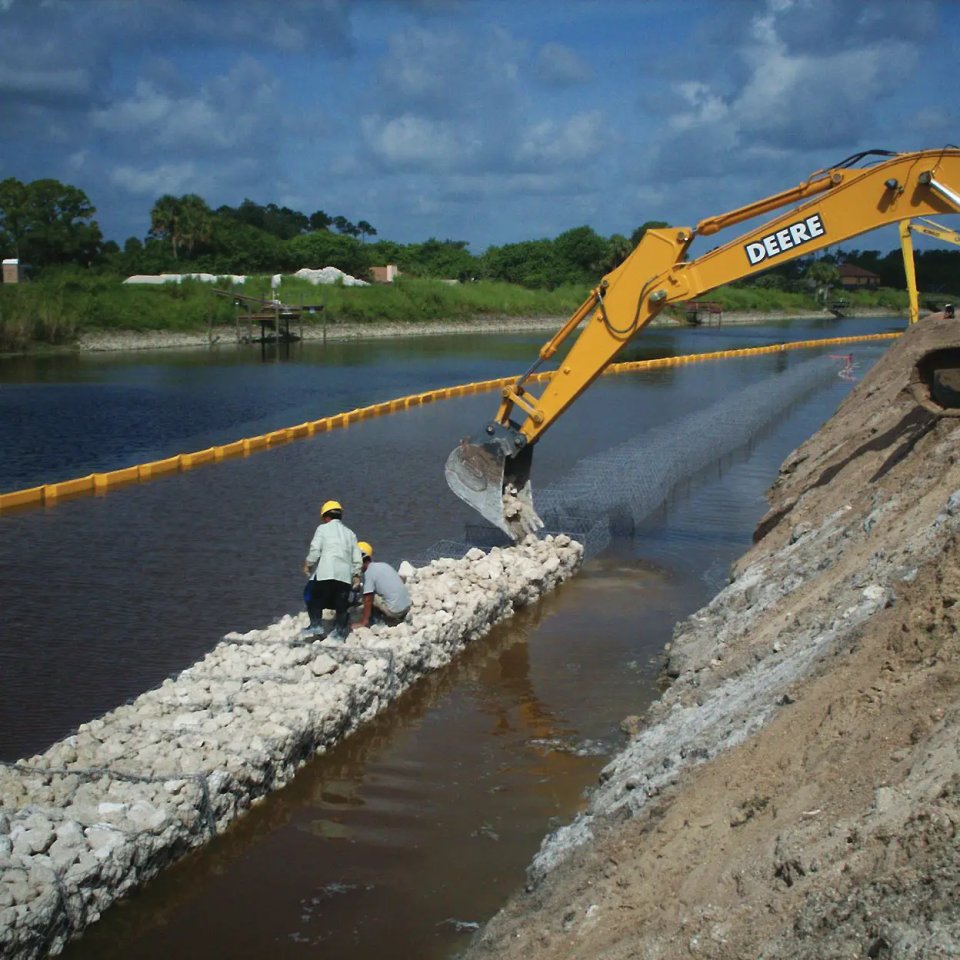

A type 2 silt curtain contains turbidity and suspended sediment in these areas while acting as a floating barrier, keeping your site in compliance by controlling turbidity and displaced sediment. One Clarion provides reliable sediment curtain that is manufactured using only the most robust components.
Type 2 Silt Curtain Features
- Models in DOT, Contractor, and Permeable
- For moving water applications
- Square foam-filled flotation
Type 2 Silt Curtain Benefits
- Manufactured in the USA
- Meets local and state regulations
- Customizable
Turbidity Curtain Site Considerations
- Water Velocity, Wind Speed and Direction
- Wave Height and Frequency
- Tidal Action
- Soil Type Longevity of the Project
For more information or if you need a turbidity curtain price, give us a call at 1-863-261-8388.
TYPE 2 TURBIDITY CURTAIN SPECIFICATIONS
Type 2 DOT Turbidity Curtain Specifications
| Length | 50 or 100 ft. |
|---|---|
| Depth | 2 to 20 ft. |
| Section Conntectors | Grommets |
| Top Connector | Top Plate |
| Fabric | 18 oz. PVC |
| Floatation | 6 or 8 in. Float |
| Ballast | 5/16 in. Steel Ballast Chain |
| Tension Cable | 5/16 in. Cable |
| *Custom Sizes and Hardware Available |
Type 2 Contractor Turbidity Curtain Specifications
| Length | 50 or 100 ft. |
|---|---|
| Depth | 3 to 10 ft. |
| Section Conntectors | Grommets |
| Top Connector | Top Plate |
| Fabric | 13 oz. PVC |
| Floatation | 4 in. Float |
| Ballast | 1/4 in. Steel Ballast Chain |
| Tension Cable | 1/4 in. Cable |
| *Custom Sizes and Hardware Available |
Type 2 Permeable Turbidity Curtain Specifications
| Length | 50 or 100 ft. |
|---|---|
| Depth | 3 to 100 ft. |
| Section Conntectors | Grommets |
| Top Connector | Universal Bulk Connectors |
| Fabric | 22 oz. PVC Monofilament Fabric |
| Floatation | 6, 8 or 12 in. Float |
| Ballast | 5/16 in. Cable |
| Tension Cable | 5/16 in. Steel Ballast Chain |
| *Custom Sizes and Hardware Available |

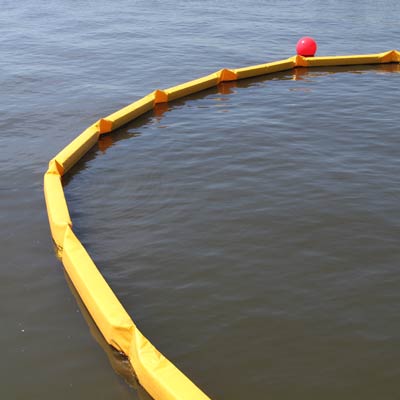

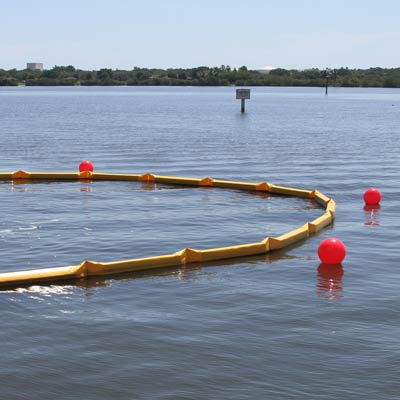

Type 2 Heavy Duty Turbidity Curtain Specifications
| Length | 50 or 100 ft. |
|---|---|
| Depth | 3 to 100 ft. |
| Section Conntectors | Grommets |
| Top Connector | Universal Bulk Connectors |
| Fabric | 22 oz. PVC |
| Floatation | 6, 8 or 12 in. Float |
| Ballast | 5/16 in. Cable |
| Tension Cable | 5/16 in. Steel Ballast Chain |
| *Custom Sizes and Hardware Available |
Type 2 Turbidity Curtain Applications
The type 2 turbidity curtain helps with silt and sediment control in moving water locations. Many cities and counties have lakes or rivers with waves, tides, and currents. The One Clarion type 2 silt curtain is the perfect solution for these types of applications. The silt curtain design mimics a floating barrier to prevent silt and sediment from contaminating these types of flowing waters, preventing local business or governments from fines or other penalties.
The type 2 silt curtain models require deployment and installation. Additional components may also be necessary to operate at their maximum efficiency. Please browse through our Turbidity Curtain Accessories for different tools to make your silt curtain even more effective. For more information or for a silt curtain price, give our knowledgeable sales team a call at 1-863-261-8388.
Silt Curtain Frequently Asked Questions
The main difference between DOT type 2 and heavy duty silt curtain is the fabric and the section connectors. A DOT silt curtain features a top connector plate, while the heavy duty model features a full slide connector between each section, and the heavy duty silt curtain uses a heftier fabric.
Yes, the type 2 silt curtain can be adjusted to handle saltwater conditions. During the manufacturing process, some components are changed for projects with saltwater conditions. For instance, the tension cables are instead made with stainless steel and the connectors are made with zinc anode for deployment in salt water.
